Input seal installer for the main gearbox.
Used to install inner sealing ring in main rotor head.
Used for bonding something on the main rotor blades. I believe its the pads on the grips and blades. Let us know if you Airbus guys know exactly what it does.
Used to remove the silver plate (whatever that is, we are all Bell guys over here) off the main rotor head.
According to Airbus' Tools & Ground Support Equipment Manual this is a "Device to install flange seal drive shaft"
Used to push the tail rotor shaft out of the tail rotor gearbox.
Used to install a variety of seals on the main rotor head assembly.
Used to install inner needle bearings in the main rotor head assembly.
A collection of male and female threads in SAE and Metric.
If you are not well versed in thread identification, this is the item you have been looking for.
This tool is for removing and installing the seal for the hydraulic pump on the transmission. The aluminum piece is the seal installer and the slide hammer is for removing the seal.
Comes with protective case and foam...
These are the threaded ones, not the quick disconnect ones that get grease everywhere except the part you want it in.
Hard to find 1/4" drive torque adapters. Most torque adapters you will find are 3/8" drive. These will allow you to use that low torque 1/4" torque wrench without the 3/8" to 1/4" adapter.
The standard set consists of 1/4", 5/16", 3/8", &...
Holding jam nut to torque or remove the main rotor hub studs on the bottom of the hub. Screw this on to the stud, hold a back up on the lower nut and tighten the bolt. Slide a socket over the large nut and torque to specs.
BO105 Transmission Drain
BO105 Tailrotor Gearbox Drain
Tail rotor gearbox drain and hose
Twist Grip Drive Tube and Control Pinion Attachment Work AidP/N: ASB76A006Used to check correct bonding strength of the control pinion on the pilot and copilot collective lever driver tubes.
Drain hose for the M01 and M05 modules. Comes with a 7 foot hose.
The AS350 engine oil and hydraulic oil tanks use the same drain.This drain comes with a 7 ft hose just like all the rest.
Not much to say here except that it comes with a 7 ft hose.Stick it in the hole and the oil runs out.
Just like all the others except different.
Installs and seats the seal into the flange housing with air pressure.
For those of you familiar with shimming the AS350 series swashplate you've probably had to rent this before and know what it is.
$200/Day - Rent starts upon arrival at your location
AirBus no longer offers this kit for rent.
This hydraulic module plunger work aid is designed for the aft facing hydraulic module on the 145 series aircraft.
The older style plunger work aid is too large to fit between the transmission and hydraulic module. This work aid is required if you want...
Comes with a 7 ft. hose.
Comes with a 7 ft. hose
One Black Plastic "Church Key" FOD Free Turbine Oil Can Opener
EC135 LIFTING EYE

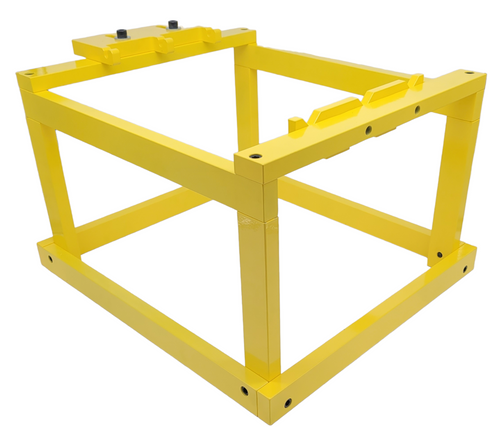

EC135 servo pack holding fixture
Used to remove single lip PTO seal on RR250 engines.
Thread into the seal and use slide hammer to remove.
Has 2 sets of bolt patterns to fit Main Gearbox Input Flange, Brake Disc, Tail Rotor Gearbox Input Flange, and Engine Flanges.
