A collection of male and female threads in SAE and Metric.
If you are not well versed in thread identification, this is the item you have been looking for.
We have this torque stripe in orange only

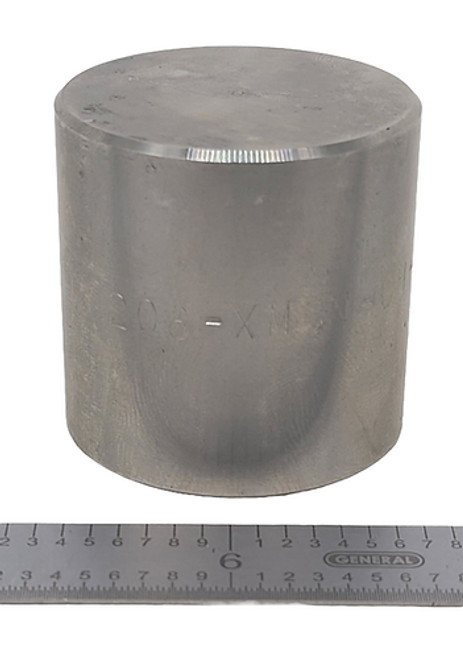

This pin is used in removing or installing planetary pinions or the spur gear in the planetary assemblies.
Helitools P/N 206-XMSN-OH-10
Bell P/N T101332
This work aid is used in aligning the pinion assembly inner race during removal and installation of the retaining shaft in lower planetary housing.
Helitools P/N 206-XMSN-OH-11
Bell P/N T101574
212-412 Repack Tool
C-shaped part is 3D printed. Color mary vary from photo when printed.
Figure 64-14 Tail Rotor Trunnion Centering Tool

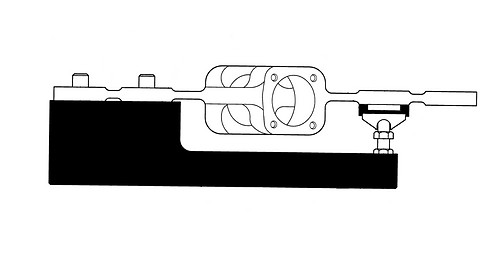

Tail Rotor Yoke Support Work Aid as per the 205, 212, & 412 CR&O. This work aid is made from steel and weighs 35lbs (16kg).
Helitools P/N 412-TR-OH-02
These reversible swing wrenches are an improvement over our other wrenches.
We are using the reversible Gear wrench brand so when you get into a tight spot and can't get the wrench off the nut or bolt you can simply flip the reversing lever and back out...
No more trying to make a screw driver for adjusting compasses with a hammer and welding rod.This is a quality, solid brass screwdriver made especially for adjusting compasses.It's 4 3/4 inches long and the blade tip is 5/32" wide.
These are the threaded ones, not the quick disconnect ones that get grease everywhere except the part you want it in.
I recently found this 90 degree grease coupler that works great on hard to access grease fittings.Works really well on the oil cooler blower bearings on the Bell 407.
It slides in from the side when straight on access is difficult or next to impossible.
205/212/412 90* and 42* gearbox drain.
Old style PT6 chip plug for the 212's I haven't seen a 212 in such a long time maybe some one could enlighten me as to what the 212 is using now.

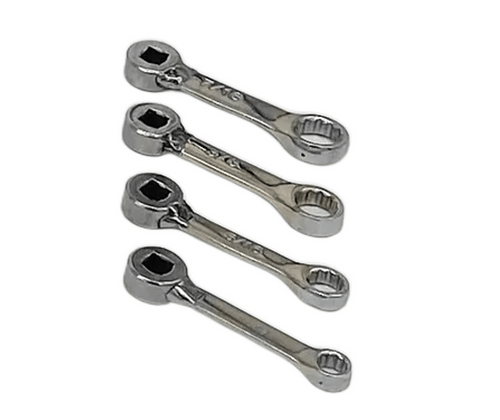

Hard to find 1/4" drive torque adapters. Most torque adapters you will find are 3/8" drive. These will allow you to use that low torque 1/4" torque wrench without the 3/8" to 1/4" adapter.
The standard set consists of 1/4", 5/16", 3/8", &...
P&W changed the chip plug and went to this style.
Fits both the 205 and 212 blade bolt nut P/N 204-011-153-001
One Black Plastic "Church Key" FOD Free Turbine Oil Can Opener
Pusher Set - 3pcs
To install transmission input quill
Bell P/N T101586

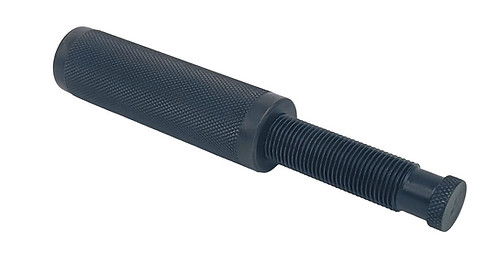

Swashplate Gimbal Ring Bolt Removal Workaid (204B, 205, 212 & 412)
205/212/214/412 External Spline Wrench
A customer was looking through some old Army magazines and found this tool and sent to us.
It is for the Bell 204, 205, 210, 212, some early models of 412 & Huey series aircraft.
